WINDSOR
EASTON TOWN CENTER
Ohio, Columbus
4,358 sq. ft.
Jul 11 – Jul 17 l 2025
As-Built Plans
Project Overview

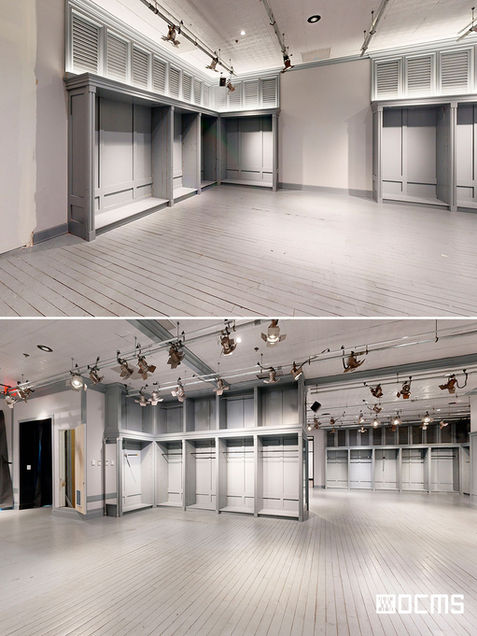

This 4,358 sq. ft. second-floor corner unit in Easton Town Center, one of the Midwest's premier retail destinations in Columbus, Ohio, is being adapted for a new Windsor store. The layout features a central double-height zone with an arch feature, expansive sales areas with fixed wall cabinetry, and large windows overlooking the mall corridor. The interior is characterized by distinct floor finishes, generous fitting rooms, and distributed ceiling lighting. AS-BUILT DRAWING SERVICES (Formerly DCMS Network) captured a full LiDAR scan and delivered coordinated as-built 3D models.
Deliverables
High-Resolution LiDAR Point Cloud Data for as-built documentation
360° Digital Twin for visualization and stakeholder review
LOD 300 Revit Model with 3D Online Visualization Views

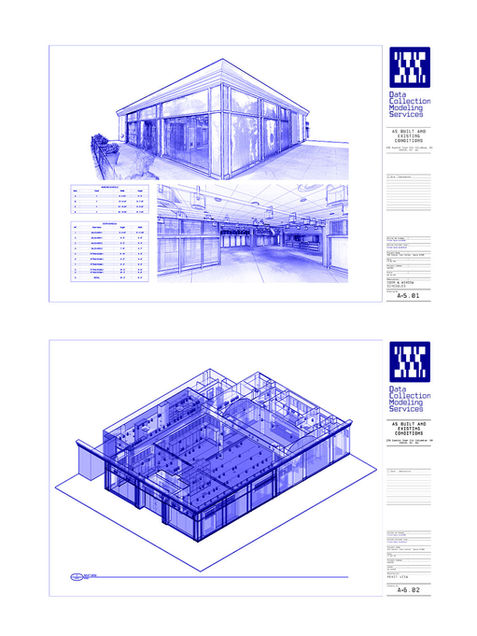

AutoCAD Drawings & PDF Sheets with annotated coordination
Our Role & Technology
AS-BUILT DRAWING SERVICES conducted a precision LiDAR survey to document architectural and MEP systems across both sales and service areas, ensuring retail-ready accuracy.
Created annotated CAD drawings highlighting customer zones, fitting rooms, and storage areas
Modeled ceiling systems, lighting fixtures, and MEP components directly from scan data
Delivered a digital twin for design collaboration and client presentations
Key Challenges & Solutions
Double-height ceilings required detailed documentation of suspended lighting and MEP layouts
Retail zoning was structured to separate sales, fitting, and back-of-house spaces efficiently
Façade and windows were precisely captured to enhance corridor visibility for branding
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Ivette Ramos
Architectural Designer at Alloi
“Delivers on time with accuracy across diverse projects.”
Our experience with AS-BUILT DRAWING SERVICES (Formerly DCMS Network) has been consistently positive, as every project has been well received and delivered with punctuality and precision. Their team has supported us on a variety of assignments, always adapting to different requirements while ensuring accuracy and their responsiveness gave us confidence to move forward without delay.
