LUXURY RESIDENCE IN SAN DIEGO
San Diego, California
8,484 sq. ft.
Mar 17 - Mar 21 | 2025
As-Built Plans
Project Overview
Situated in San Diego, California, this 8,484 sq. ft. luxury residence required full architectural and structural documentation to support future renovation planning. Surrounded by natural landscape, AS-BUILT DRAWING SERVICES (A DCMS Network Company) executed a detailed 3D laser scan to deliver accurate digital data for both interior and exterior zones, ensuring reliable design coordination and site integration.
Deliverables

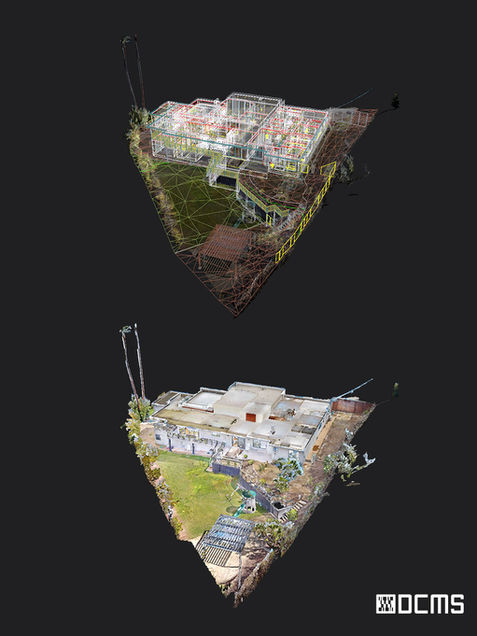

High-density point cloud data for complete architectural and structural reference
LOD 300 Revit model with design-ready geometry and detailed material layers

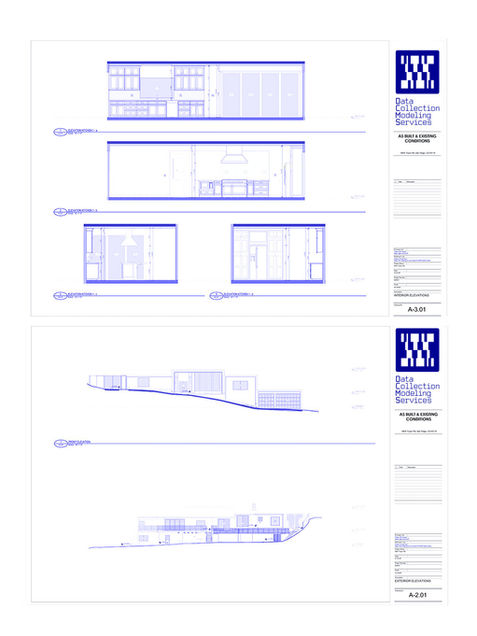

2D AutoCAD drawings including floor plans, elevations, and ceiling layouts
Revit LOD 300 model creation for architectural and structural components
Our Role & Technology
AS-BUILT DRAWING SERVICES (A DCMS Network Company) implemented LiDAR technology and integrated modeling workflows to ensure photorealistic accuracy across the property.
Captured full property geometry and terrain using high-precision laser data
Developed 2D and 3D as-built documentation aligned with architectural and structural needs
Structured a Revit model to reflect accurate site conditions and future design adaptability
Key Challenges & Solutions
Complex terrain and split levels requiring scan adjustments for topographic accuracy
Exterior integration involving retaining walls, terraces, and grading transitions
Interior precision achieved through millimeter-level layout capture for coordination
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Diane Zoura
Architect at Senses & Spaces
“Delivered exactly what I needed: fast and reliable.”
Delivered exactly what I needed : fast, reliable, and precise documentation.” …...My experience with ADS was very good. I was very happy with the results and would recommend them to anyone.
