HILLCREST SINGLE-LEVEL BRICK & WOOD HOME
Texas, Dallas
4,635 sq. ft.
Mar 28 - Apr 04 l 2025
As-Built Plans
Project Overview

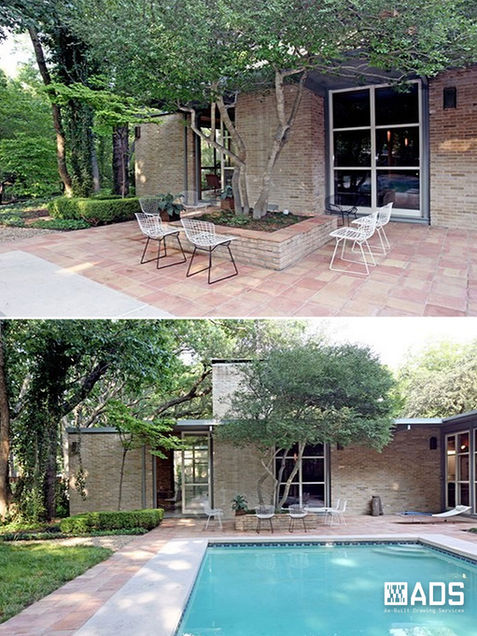

Located in Dallas’s Preston Hollow, this 4,635 sq. ft. single-story residence integrates granite, steel, and custom woodwork framed by expansive windows. AS-BUILT DRAWING SERVICES (A DCMS Network Company) executed a full LiDAR-based survey to capture architectural and structural details, both interior and exterior. The resulting dataset documented surrounding vegetation, unique textures, and MEP systems, supporting renovation planning with precision.
Deliverables
High-resolution LiDAR point cloud offering accurate spatial data for as-built documentation
High-resolution LiDAR point cloud offering accurate spatial data for as-built documentation

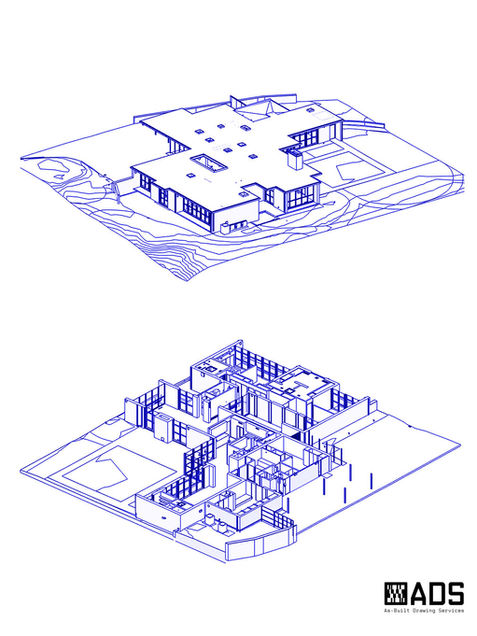

LOD 300 Revit model with IFC export ensuring full architectural representation
3D visualization model and views providing detailed virtual context for design and review
Our Role & Technology
AS-BUILT DRAWING SERVICES (A DCMS Network Company) combined high-accuracy LiDAR scanning with detailed site modeling to document the home’s structure and surroundings.
Structured a LOD 300 Revit model from high-density laser data for seamless coordination
Documented material variations including granite, wood, and exposed brickwork in full detail
Mapped lighting, audio, and security systems to support future technical integration
Key Challenges & Solutions
Sloped garage terrain requiring accurate modeling of topography and elevation variations.
Custom finishes demanding detailed capture of materials for renovation accuracy.
MEP coordination ensuring all lighting, alarm, and speaker systems were represented for future planning.
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Wesley Tunnell, AIA
Senior Associate at M Gooden Design
“Exceeded expectations by delivering early with accuracy.”
Everything about the collaboration was excellent. Despite offering the lowest bid and fastest turnaround, DCMS exceeded expectations by delivering the complete set of as-built documents earlier than promised and with impressive accuracy. . We will definitely engage AS-BUILT DRAWING SERVICES (A DCMS Network Company) again for future additions and design projects.
