CHILDCARE CENTER IN KENDALL SOUTH
Miami, Florida
4,656 sq. ft.
Apr 26- May 06 | 2025
As-Built Plans
Project Overview

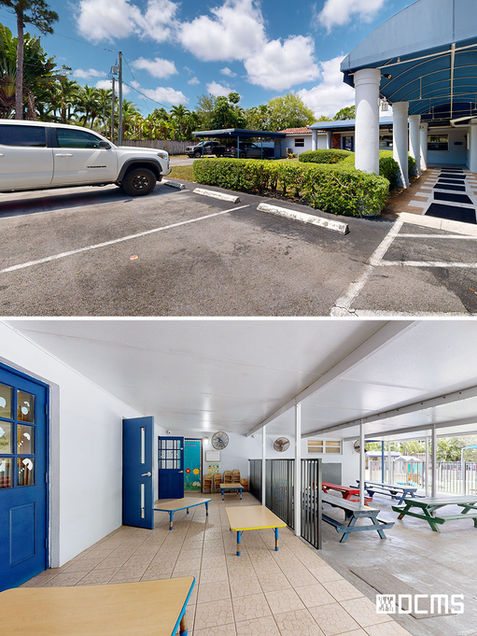

Situated in the quiet residential area of Kendall, southwest of Miami, this 4,656 sq. ft. daycare facility required full architectural documentation to support renovation and modernization efforts. Featuring gabled roofs, arched entries, and classical columns, the building was scanned inside and out using high-precision LiDAR technology. The resulting data enabled the design team to plan upgrades accurately while maintaining the center’s original charm and functionality.
Deliverables
LiDAR point cloud data: high-resolution spatial documentation
360° digital twin for remote visualization and coordination
2D CAD drawings including plans, roof layouts, and annotated elevations
LOD 300 Revit model structured for renovation planning
Our Role & Technology
The team executed a complete interior and exterior LiDAR survey, producing a coordinated BIM dataset for design development.
Reconstructed architectural geometry including arches, roofs, and round columns with millimetric accuracy.
Structured interior elevation packages by area to optimize review workflows.
Integrated visible MEP components—lighting, outlets, and plumbing—into the digital model.
Key Challenges & Solutions
Ornamental details, including arches and columns, were precisely captured to ensure faithful restoration of the original design.
The detailed, room-by-room capture approach resolved spatial intricacies and improved coordination with interior elements.
Compressed project timelines were achieved through optimized data workflows and an organized modeling process by area.
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
