VETERINARY CLINIC UNIT IN GRASS VALLEY
Grass Valley, California
3,754 sq. ft.
Jul 01 – Jul 08 l 2024
As-Built Plans
Project Overview
Nestled within a retail complex in Grass Valley, California, this 3,754 sq. ft. single-level veterinary clinic was documented to support future renovation planning and service coordination. AS-BUILT DRAWING SERVICES (A DCMS Network Company) conducted a precise LiDAR survey to capture the layout, partitions, and mechanical systems, ensuring reliable data for both architectural and technical integration.
Deliverables

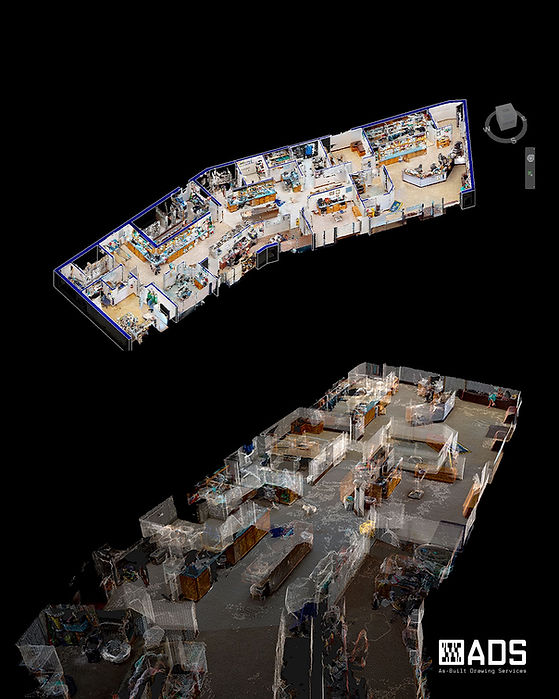

High-resolution LiDAR point cloud for accurate as-built documentation
360° digital twin providing remote visualization for project stakeholders
AutoCAD drawings and PDF sheets with annotated coordination details
Comprehensive photo record for full design and construction context
Our Role & Technology
AS-BUILT DRAWING SERVICES (A DCMS Network Company) implemented an optimized Scan-to-BIM workflow to ensure millimeter precision across all interior spaces.
Documented walls, ceilings, and partitions using high-resolution LiDAR data
Integrated MEP elements within the reflected ceiling plan for precise coordination
Compiled complete CAD and PDF sets to support both technical and design teams
Key Challenges & Solutions
Clinic zoning documentation ensured accurate recording of veterinary prep and service areas
Ceiling-mounted MEP systems modeled for future technical upgrades
Tight schedule maintained with full deliverables completed within eight days while meeting QA standards
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Wendy Zhang
Director of Design & Development at CURO Pet Care
"Delivered precise as-built plans for our design needs."
AS-BUILT DRAWING SERVICES (Formerly DCMS Network) provided a seamless experience, delivering precise CAD drawings and a full photo record for our Grass Valley veterinary clinic. Their accuracy and attention to detail made our design process efficient and reliable, ensuring every spatial element was perfectly documented.
