POUGHKEEPSIE STATE OFFICE BUILDING IN NY
Poughkeepsie, New York
565,308 sq. ft.
Mar 26 – Apr 08 l 2025
As-Built Plans

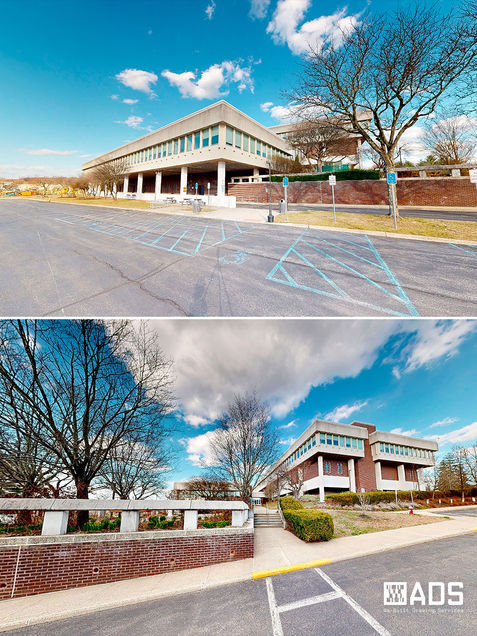

Project Overview
Positioned in the heart of New York’s Hudson Valley, this 565,308 sq. ft. state office complex in Poughkeepsie required extensive architectural documentation to support its renovation program. The scope encompassed interior layouts, façade elevations, and detailed topography of surrounding parking and landscaped areas. By combining precise scanning and modeling, the documentation established an essential foundation for accurate design planning and future building improvements.
Deliverables
High-resolution LiDAR point cloud ensuring accurate as-built documentation
360° digital twin providing remote visualization for design coordination
AutoCAD drawings and PDF sheets offering fully annotated and organized documentation
Site photo record with comprehensive visual references for full design context
Our Role & Technology
To achieve consistent and detailed results, our team developed the as-built model in Revit using millimeter-accurate LiDAR data. The workflow integrated topographic processing and laser-based capture to deliver coordinated outputs across disciplines.
Mapped architectural walls, windows, and roofs with precise alignment across all elevations
Generated a topographic model from processed point cloud data, refined in Revit

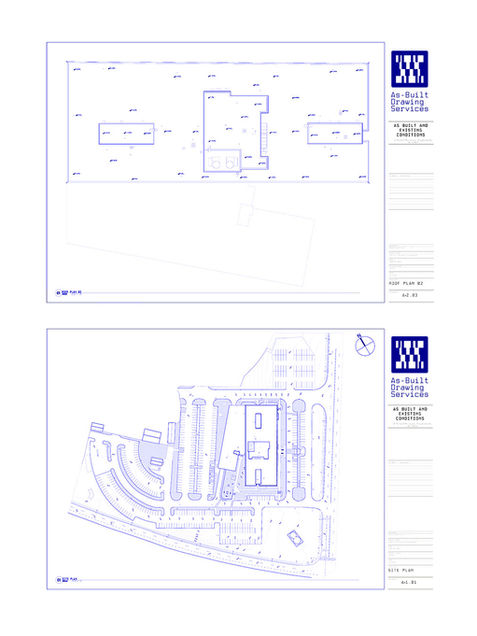

Delivered CAD drawings including floor plans, façade elevations, and contour representations
Key Challenges & Solutions
Large-scale site with elevation variations managed through selective point cloud cleaning for ground data isolation
Complex topographic modeling addressed through the integration of Civil 3D and Revit workflows
Dimensional consistency across vast floor areas maintained through rigorous verification and section refinement
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
