NATIONAL HOTEL IN MIAMI BEACH
Miami, Florida
28,405 sq. ft.
August | 2022
As-Built Plans
Project Overview
Located in the heart of Miami Beach’s Art Deco district, the iconic National Hotel required precise 3D documentation to guide upcoming renovations. AS-BUILT DRAWING SERVICES (A DCMS Network Company) conducted a comprehensive LiDAR survey of the main lobby, kitchen, basement, and outdoor areas, including the infinity-edge pool and terrace, signature elements of the property’s design. The resulting digital model supports collaboration with local architects while preserving the hotel’s historic character and coastal elegance.
Deliverables
High-Density Point Cloud Data
LOD 200 Revit Model

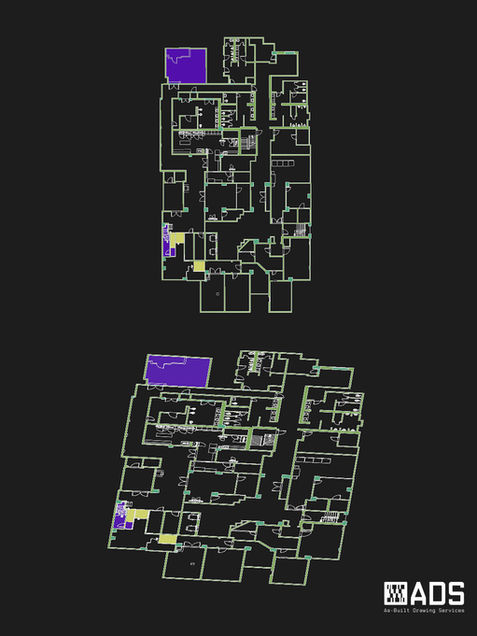

Architectural As-Built Plans (Basement & First Floor)
Matterport Virtual Walkthrough
Our Role & Technology
The project focused on balancing heritage preservation with technical modernization.
Key tools and methods used:
Captured interior conditions using high-resolution LiDAR 3D scanning.
Converted point cloud data into a detailed LOD 200 Revit model.
Executed exterior site capture for pool, terrace, and façade documentation.
Key Challenges & Solutions
Restricted Basement Access: Managed dense MEP layouts through precise, low-impact scanning.
Historic Integration: Ensured accurate planning while maintaining Art Deco finishes.
Outdoor Feature Modeling: Mapped pool and terrace geometry to assist design and marketing objectives.
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Javier Fornaris Pau
Managing Principal at FPA Designs
“A truly reliable partner for any project.”
I’m impressed with Antonio´s team, their accuracy, efficiency, and rapid turnaround exceeded my expectations. A truly reliable partner for any project.
