SOLANA BEACH SHOPPING MALL
Solana Beach, California
|
Westcoast
14 Jan - 31 Jan | 2025
146,404 SF
As-Built Plans
Project Overview

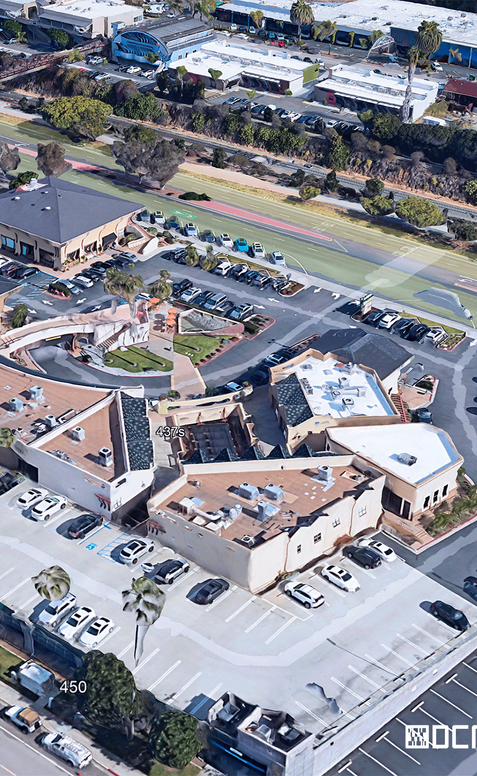

Located in coastal Solana Beach, this retail and mixed-use complex underwent a large-scale modernization aimed at revitalizing its tenant mix and enhancing consumer experience. AS-BUILT DRAWING SERVICES conducted a full Scan-to-BIM survey to document the existing site conditions with precision. The as-built data provided a reliable foundation for architectural upgrades, tenant coordination, and redevelopment aligned with new lifestyle and wellness concepts.
Deliverables
High-Density LiDAR Point Cloud Data
Georeferenced orthophotos for aerial reference

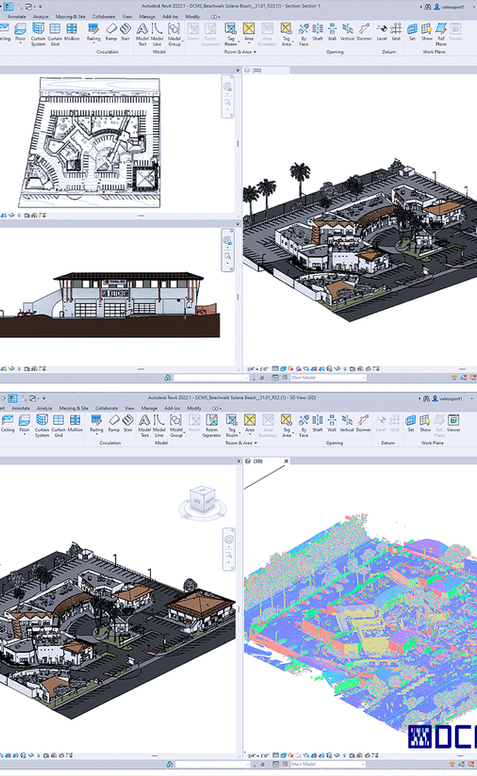

LOD 300 Revit model and coordinated 2D CAD plans
Virtual walkthrough for off-site review
Our Role & Technology
The team combined aerial and terrestrial technologies to achieve complete site coverage and millimetric accuracy. Tools used:
Executed LiDAR and drone-based data capture across all structures.
Processed and aligned datasets to produce BIM-ready outputs.
Provided integrated visual documentation to aid redevelopment planning.
Key Challenges & Solutions
Large Multi-Zone Site: Blended aerial and ground scans ensured consistent coverage of outdoor and indoor spaces.
Diverse Project Stakeholders: Deliverables were customized for design, leasing, and developer coordination.
Onsite Continuity: Remote walkthroughs enabled project progress without disrupting active tenants.
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Lee Lowell
Assistant Project Manager
at Capstone, California, US
“We’ve been quite impressed with the model results”
We’ve been quite impressed with the model! Our design team has been using it extensively since delivery, and it’s proven to be a valuable asset. We’re currently collaborating on a project in Solana Beach, and the accuracy and clarity of your model have made a real difference in our process.
