BALDWIN FARMS CONTEMPORARY RESIDENCE
Greenwich, Connecticut
6200 sq. ft.
Jan 07 – Feb 6 l 2025
As-Built Plans
Project Overview

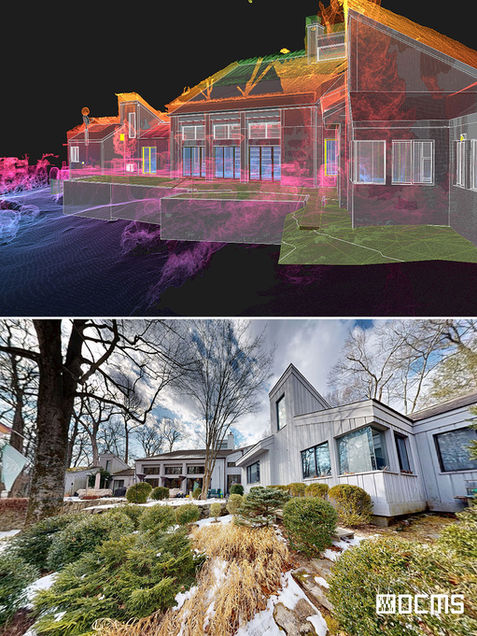

Located in Greenwich’s prestigious Baldwin Farms, this 6,200 sq. ft. modern residence stands out for its white façades, expansive glazing, and lush natural setting. Inside, double-height living and dining spaces create a seamless connection between architecture and landscape. AS-BUILT DRAWING SERVICES (Formerly DCMS Network) completed a comprehensive LiDAR survey under winter conditions, capturing the property’s full geometry to produce a precise BIM model and technical documentation for design and renovation.
Deliverables
High-Resolution LiDAR Point Cloud: Accurate spatial data for as-built documentation
360° digital twin for visualization and remote stakeholder review.
LOD 300 Revit model with dimensional accuracy and complete virtual representation.
CAD drawings and PDF sheets with full annotation and design coordination.
Our Role & Technology
AS-BUILT DRAWING SERVICES (Formerly DCMS Network) utilized a LiDAR-based workflow to maintain precision under challenging winter conditions.
Constructed accurate 3D geometry for all levels, including attic and basement, directly from point cloud data.
Incorporated roof geometry, ceiling heights, and architectural detailing to ensure spatial coherence.
Recorded all openings, fenestration, and lighting fixtures to establish reliable design references.
Key Challenges & Solutions
Winter snow conditions requiring phased scanning to achieve complete exterior coverage.
Complex roof and attic geometries demanding detailed alignment for dimensional fidelity.
Integrated CAD and BIM deliverables enabling coordinated planning and design execution.
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
