WAREHOUSE FACILITY IN BROOKLINE

Brookline, Massachusetts

|

International

Nov 11 - Nov 25 | 2024

51,542 SF

As-Built Plans

Project Overview

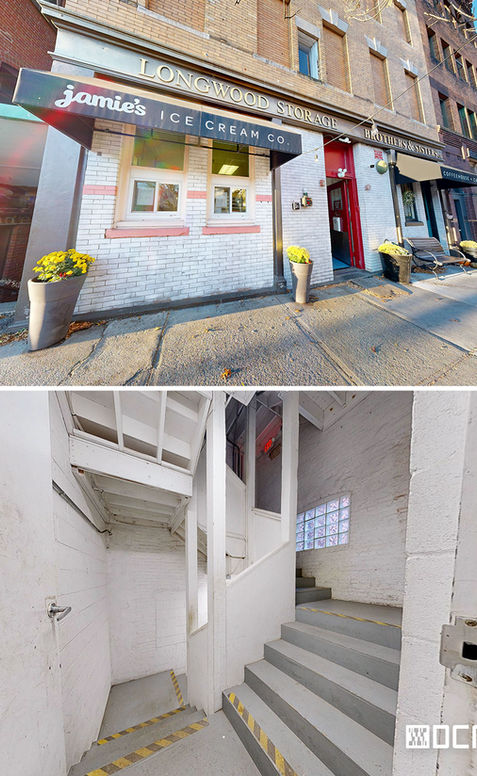

Positioned in the busy urban core of Brookline, Massachusetts, this seven-story, 51,542 sq. ft. storage facility features split-level units, irregular floor layouts, and visible MEP infrastructure. AS-BUILT DRAWING SERVICES completed a full as-built survey to produce precise documentation supporting facility management, future upgrades, and long-term operational planning across all levels.

Deliverables

High-density point cloud data across all floors

360° digital walkthrough for project coordination and review

Architectural as-built drawings: floor plans, RCPs, elevations

Fully annotated CAD and PDF sheets organized per level

High-density point cloud data across all floors
Generated consistent point cloud datasets using high-precision scanning workflows.

Our Role & Technology

The team executed a complete seven-level LiDAR survey integrating detailed geometry and structured modeling.

Generated consistent point cloud datasets using high-precision scanning workflows.

Developed a Revit model including units, stairs, sublevels, and vertical systems.

Produced fully annotated AutoCAD sheets prepared for layout and submission.

Key Challenges & Solutions

Irregular Layouts: Non-linear floor geometry aligned through targeted point cloud cross-referencing.

Low Lighting: Scanner placement and data correction optimized visibility in dark or obstructed areas.

Unit-by-Unit Detailing: Each storage unit modeled individually for spatial clarity and design accuracy.

OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver


David Williams

Director of Market Development at SSG Development, LLC

"The scope grew, kept up at every step"

What started as a simple floor plan request quickly expanded and AS-BUILT DRAWING SERVICES (ADS) handled every additional deliverable with speed and accuracy. Having the scan made it easy to request more.

average rating is 5 out of 5
