RUSSIAN NAILS SALON MAIDEN LANE, NY

Manhattan, New York

1,500 sq. ft.

Oct 29 – Nov 08 l 2024

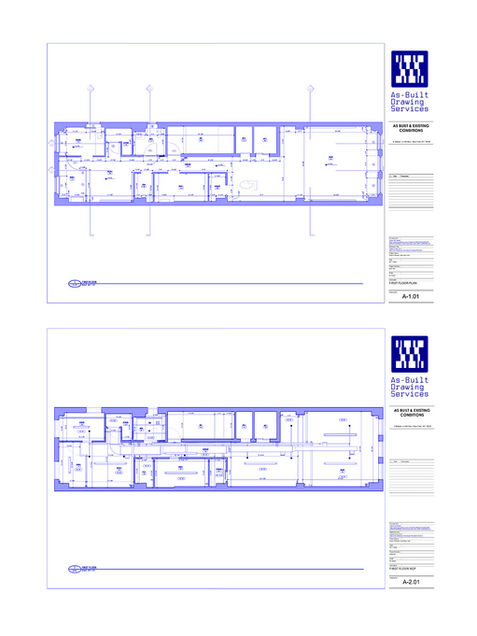

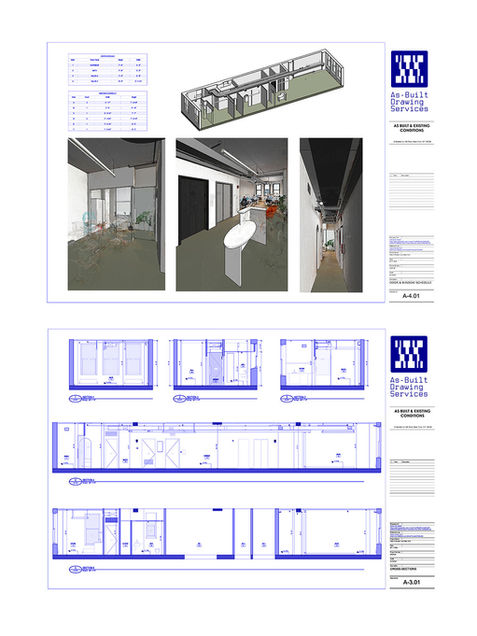

As-Built Plans

Aperçu du projet

Situated on the 4th floor of a commercial building in New York’s Financial District, this 1,500 sq. ft. nail salon was surveyed as part of an ongoing collaboration for a luxury beauty brand. Featuring exposed systems and street-facing windows, the project required precise capture of stairs, ducts, and fixtures. AS-BUILT DRAWING SERVICES provided detailed LiDAR documentation to ensure accurate layouts, seamless MEP coordination, and reliable data for renovation planning.

Livrables

High-Resolution LiDAR Point Cloud Data

360° Digital Twin for design collaboration

LOD 300 Revit Model with visualization outputs

AutoCAD Drawings & Annotated PDF Sheets

Notre rôle et notre technologie

AS-BUILT DRAWING SERVICES carried out a scan-to-BIM workflow, documenting architectural, structural, and MEP systems with millimeter precision. The final deliverables supported efficient coordination between design and engineering teams.

Built an LOD 300 Revit model including utilities, stairs, and lighting elements

Created dual-unit PDF layouts and sections for international coordination

Provided 360° digital twin and CAD deliverables for multi-phase design planning

Principaux défis et solutions

Complex MEP layouts required accurate modeling of exposed ducts and fixtures

Global coordination achieved through dual-unit measurement standards

Restricted site access optimized through streamlined LiDAR scanning
